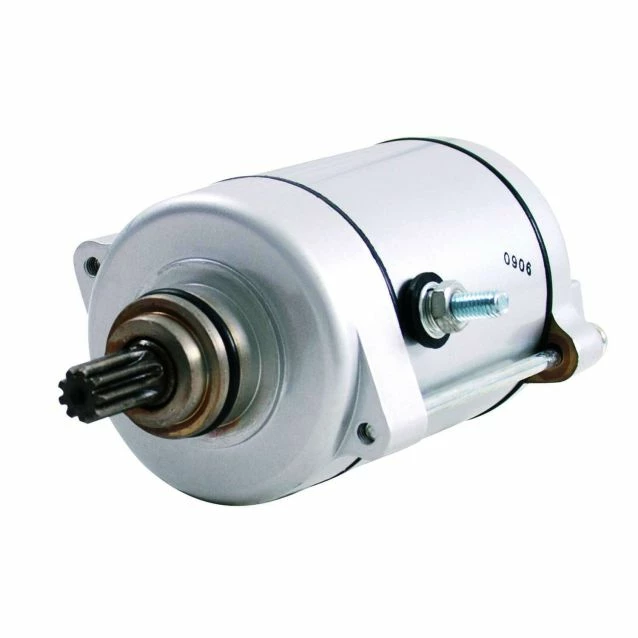

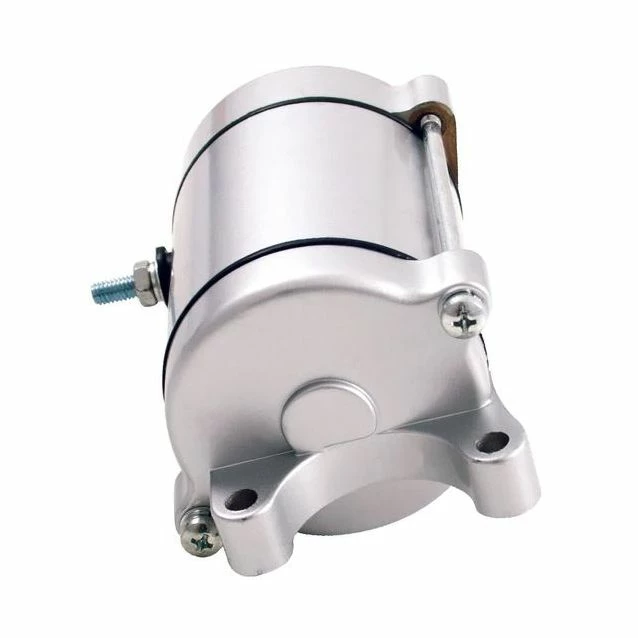

MOGO Parts Starter Motor, 9T. Vertical

9-Teeth Starter Motor for CG125cc-250cc Air-Cooled ATV, Go Kart & Dirt Bike. The item fits for CG125cc-250cc Air-Cooled Engine.

SPECIFICATIONS

• Length: 6.5″ (End-End, including bracket and spline shaft)
• Length #2: 4.0″ Main Case Length
• Diameter(s): 2.6″ (Main Case Diameter)
• Mounting: 2 Bolt
• Bolt Hole Spacing: 53mm/2.0″
• Terminal Connection: Single Post, wire not included
• Spline Count: 9
• Spline Length: 24mm
• Rotation: Clockwise

NOT INCLUDED

• Mounting Bolt(s)
• Terminal Wire(s)
